We know that early stage solar power systems or solar photovoltaic systems quickly reach the end of their life cycle.

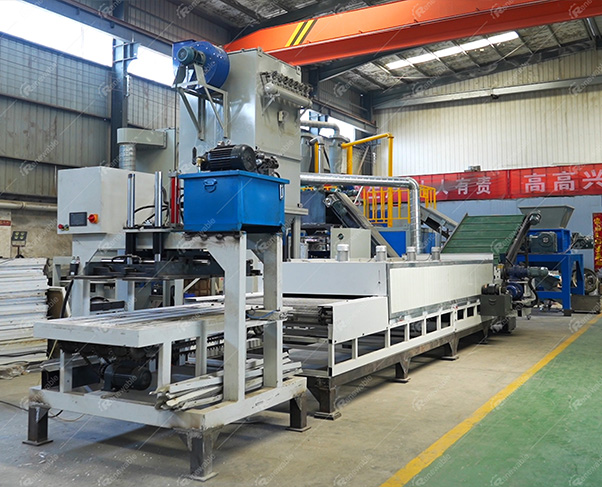

In response to the current problems in the recycling of solar panel materials, we have developed an energy-saving, environmentally friendly, efficient and low-cost solar photovoltaic panel recycling production line.
We provide industry-leading recycling solutions. The waste photovoltaic panel processing equipment extracts glass, aluminum, silicon, copper, silver and plastics with higher market value through physical crushing and sorting process and cracking process.
Solar panel recycling physical process
The physical recycling process of solar photovoltaic panels generally has four main steps:
The first step is to remove the aluminum frame and junction box by machine.
The Second step is to remove the tempered glass.
Third step The panels are crushed and sorted the silicon powder and copper powder and EVA powder.
The fourth step is to extract silver from silicon powder.
Solar panel recycling pyrolysis process
The cracking process of solar photovoltaic panels is mainly divided into four steps:
The first step is to remove the aluminum frame and junction box by machine.
The second step is Solar photovoltaic panel pyrolysis.
The third step is sorting waste photovoltaic panels.
The fourth step is to extract silver from silicon powder.
Compact structure, reasonable layout, stable performance, low noise.
The recycling equipment of waste circuit board adopts two stage crushing, which can make the processing capacity reach 800kg per hour.
The whole production line adopts negative pressure feeding to effectively reduce dust overflow.
The sorting rate of airflow sorting equipment is up to 99%.
High voltage electrostatic separator makes sorting more fine and efficient, effectively control the loss of non-ferrous metal.
Equipped with magnetic separation function, iron can be separated from the material.
The waste circuit board recycling equipment adopts PLC to control the complete production line for uniform feeding and coordinated operation.
The grinding chamber adopts circulating water temperature control and noise reduction.
The return system makes crushing more efficient.
The efficiency of pulse dust removal equipment is as high as 99%, which effectively inhibits dust vocalization
|
Model |
Capacity（Kg/H） |
Power（kw） |
Dimension（m） |
|
RNB-GFB 500 |
300-500 |
134 |
25*6*5 |
|
RNB-GFB 1000 |
800-1000 |
238 |
35*8*5 |
Note: 1. The above machine is our standard configuration, but for different raw materials, it is different machine configuration, so please contact us about your raw materials; 2. The machine voltage can be customized.
