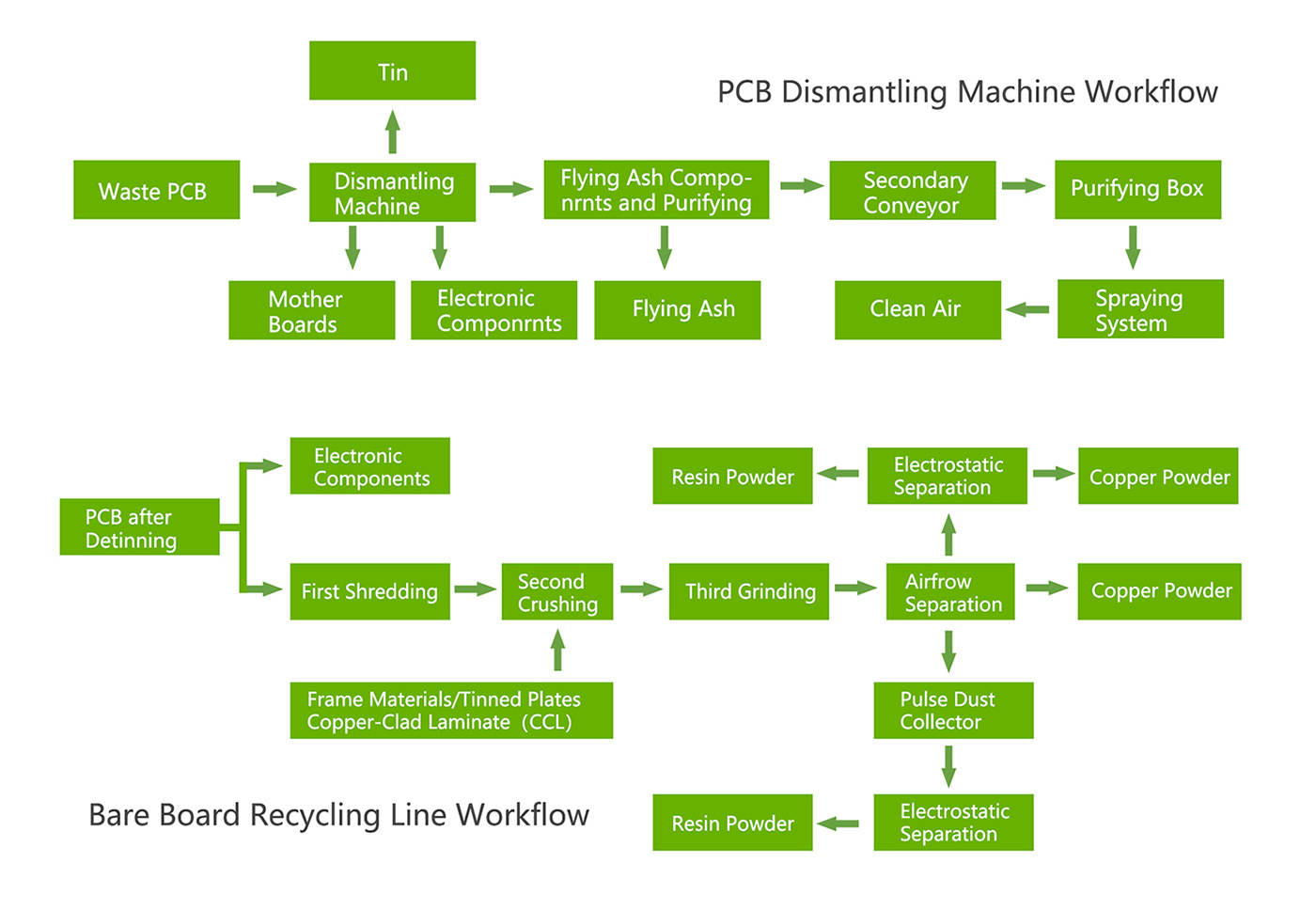

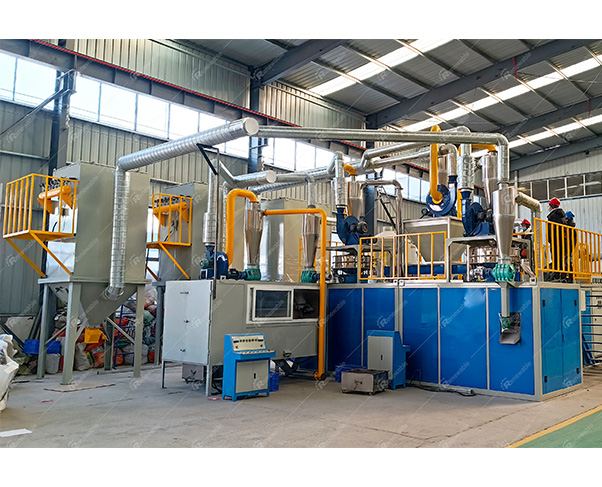

E-Waste recycling plant is used to recycle various PCB circuit boards, such as computer boards, mobile phone boards, TV boards, home appliance circuit boards, etc. The whole production line consists of two parts: 1. PCB Dismantling Machine, you can get complete electronic components, tin, motherboard, 2, Bare Board Recycling Line, you can get mixed metal powder and non-metallic powder. Of course, precious metal powder can also be extracted again through precious metal refinery to get gold, silver, palladium, platinum, copper, iron, etc., and the separation purity can reach 99%.
By heating, the tin on the PCB is melted, and then the mainboard is separated from the electronic components. The separated mainboard can be crushed, shredded, ground, and separated to obtain mixed metal powder and non-metal powder.
Compact structure, reasonable layout, stable performance, low noise.
The recycling equipment of waste circuit board adopts two stage crushing, which can make the processing capacity reach 1000kg per hour.
The whole production line adopts negative pressure feeding to effectively reduce dust overflow.
The sorting rate of airflow sorting equipment is up to 99%.
High voltage electrostatic separator makes sorting more fine and efficient, effectively control the loss of non-ferrous metal.
Equipped with magnetic separation function, iron can be separated from the material.
The waste circuit board recycling equipment adopts PLC to control the complete production line for uniform feeding and coordinated operation.
The grinding chamber adopts circulating water temperature control and noise reduction.
The return system makes crushing more efficient.
The efficiency of pulse dust removal equipment is as high as 99%, which effectively inhibits dust volatilization
|
Model |
Capacity（Kg/H） |
Power（kw） |
Dimension（m） |
|
RNB-PCB 300 |
200-300 |
102 |
20*5*5 |
|
RNB-PCB 500 |
400-500 |
134 |
25*6*5 |
|
RNB-PCB 800 |
600-800 |
194 |
30*6*5 |
|
RNB-PCB 1000 |
800-1000 |
238 |
35*8*5 |
Note: 1. The above machine is our standard configuratoin, but for different raw materials, it is different machine configuration, so please contact us about your raw materials; 2. The machine voltage can be customized.
